Manufacturer:
ENGEL

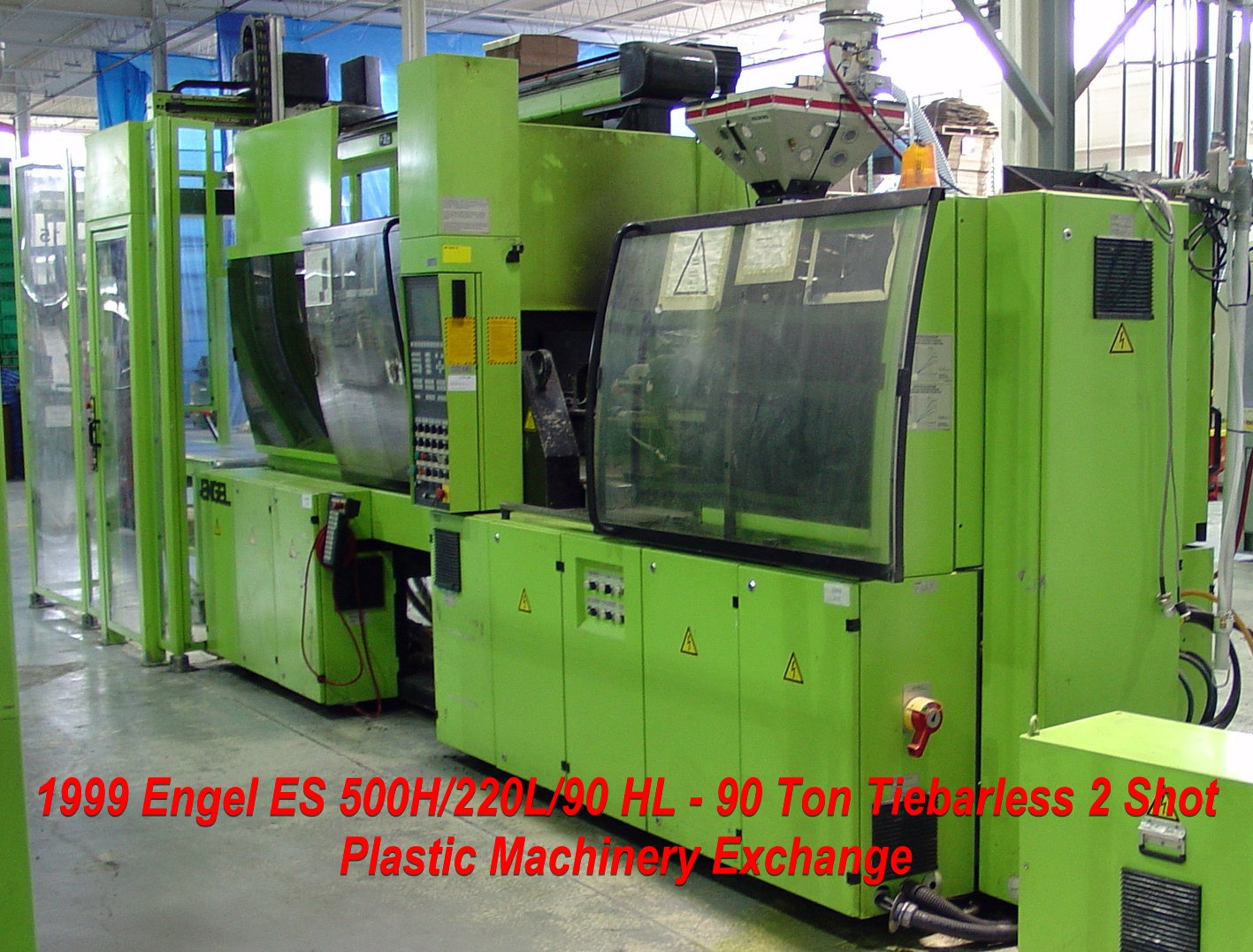

Model: ES 500H/200L/90 TL - 2C
Color: Light Green
Ref #: 87873/90/99
Year of Manufacture: 1999
Clamp Capacity/Type: 90 Ton Tiebarless Hydraulic
Shot Capacity: 6.4 Oz/35 mm + 3.2 Oz/30 mm
Platen Size: 27.95H x 22.05V
Daylight: 9.84 - 27.56
Clamp Stroke: 17.72
Min Mold Height: 9.84
Control Type/Voltage: CC 100 - A03 Microprocessor/460V
Location: Northeast
Condition: Excellent
Hours Run: Only than 13,720
Optional Features: Mounting pads, Extended nozzle, both injection units prepared for hydraulic &
pneumatic shut off nozzles, M3 barrels & S8 Screws, Double core pull
on moving platen with pressure release valve, frame extended 200 mm (mold
height with magnetic platen is 346 mm), 460 V Transformer for heater
bands, (2) 460 volt plugs 16 Amp each, Contacts for color feeder, (8)
Extra zones of mold heat control + Additional 8 zone heat card, old
temperature monitoring on fixed and moving platen, Spanish to English
Language in CPU, QDP/CPC Package, Freely programmable core pull software
with 36 steps, Air blow, Increased cooling capacity on heat
exchanger
Terms: 25% with written PO
to secure equipment, cashiers check prior to shipment on balance.
Price: Call or E-mail (Includes Engel ERC
23 Robot) Pricing revised 4-28-08
Comments: We believe these
specifications to be correct, however, they cannot be
guaranteed, and we invite your inspection.
