NRM 2.5" 30:1 Water Cooled Extruder Ref #10RBF

• Model PMill/Lab Extruder
• Water Cooled
• Vented & Plugged
• Vacuum Pump
• Two Stage Barrier Screw
• 50 HP DC Reliance Drive
• Ratio: 16.95:1
• 4 Barrel Zones / 1 Gate / 1 Adapter
• 9 Die Zones / Auto 7 Manual Cool
• West 600 Controllers
• Melt Temp Indicator
• Dynisco Pressure Gauge
• Low Hours / Excellent Condition
• 6 Months Parts Warranty Included

GENCA 2.5" 24:1 Extruder Ref #11RBF

• Completely Refurbished
• Air Cooled
• PE Screw
• New Control Panel
• 4 Barrel Zones / 3 Die Zones
• Syscom Dual Display Controller
• 480 Volts
• New Hopper
• Heated Clamp
• Rebuilt 40HP DC Motor
• Safetronics DC Digital Drive
• 15:1 Gear Box Ratio

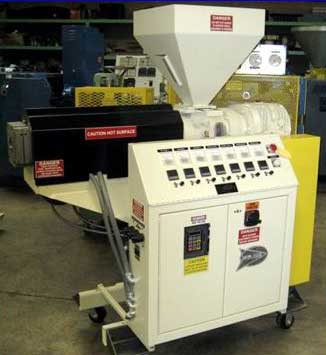

NELMOR 1.5" 30:1 Co=Extruder Ref # 12RBF

• Completely Rebuilt
• Rebuilt Gear Box with New Seals

Following Items Supplied New:

• Barrel & Screw
• Heater Bands
• Blowers, Wiring & Thermocouples
• 10 HP AC Motor with 10HP Baldor Drive
• Belts & Pulleys
• 30:1 Ratio/58.13 RPM
• Option: 116 RPM available
• Slim Mount Control Panel with 4 Barrel Zones
• 3 Die Zones
• Amp Meters with Individual Zone Shut-Off using Syscon Dual Display Controllers
• Casters for Co-Extrusion Applications
• 480 Volts
• New Hopper & Sheet Metal
• New Paint
• Manufacturers Warranty On New Parts for 6 Months

Youngstown 3/4" Pedestal Co-Extruder Ref # 14BF

• Manufactured 1994
• Refurbished 2009
• 20:1 Screw
• 1 HP Motor
• Pedestal Mounted with Pivot Option
• Hopper
• Excellent Condition

HPM 6" 30:1 Extruder Ref # 16RBF

• Completely Rebuilt (as shown 60% complete)
• 500 HP Drive Motor with New Bearings
• 1000 HP Rated Gearbox
• 17:1 Gear Box Ratio
• Double Wave Screw
• Water Cooled Barrel
• New Heater/Coolers
• New Temperature Control Panel
• All New Wiring
• New Paint
• New Sheet Metal
• Manufacturers Parts Warranty

1.5" Johnson Extruder Ref #1 YUSK

• 1.5" 24/1 Screw
• Model F284E1
• Searial # 2215J09
• 3 Barrel Zones
• Air Cooled
• 15 HP DC Drive
• Jacketed Feed Throat
• Control Panel with 7 Zones
• Casters
• Lab Extruder for Eastman Kodak

Davis Standard 75MM Extruder Ref # 2RBF

• Completely Rebuilt with Warranty
• New Barrel with WEXCO 666 Liner
• Rebuild 100 HP DC Drive
• New 100 HP DC Drive Control
• New Water Cooled System
• New Belts & Pulleys
• 17.2:1 Great Box Ratio
• Rebuilt Gear Box with New Seals
• New Control Panel with 6 Barrel Zones, 5 Die Zones, 1 Melt with AMP Meters
• Syscon Dual Display Temperature Controllers
• New Hopper
• New Sheet Metal & Guards
• Rebuilt 3" Hydraulic Screen Changer with Power Pack
• 480 volts with 220 Volt Die Zones
• Available 2 weeks from Receipt of Deposit
