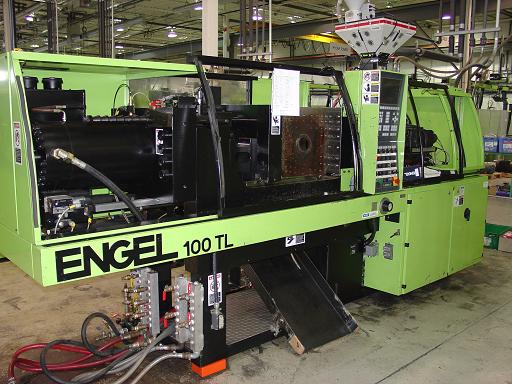

Manufacturer: ENGEL
Model: ES 330/100 TL
Color: Light green
Ref #: 2549/100/99
Year of Manufacture: 1999
Clamp Capacity/Type: 100 Ton Hydraulic
Shot Capacity: 6.5 Oz/40 mm (Easily converted
to 5 Oz/35mm or 3.7 Oz/30 mm)
Tie Bar Spacing: Not Applicable
Platen Size: 27.95 H x 22.05 V
Maximum Daylight: 27.56
Clamp Stroke: 17.72
Min Mold Height: 9.84
Control Type/Voltage: EC 100 EL/575 Volt (easily
converted to 460 V with a transformer)
Location: Northeast
Condition: Good
Hours Run: 32,557
Optional Features: Level mounts, 8 channel waterflow, water
manifolds, Filtroil, SPI key switch, air blow, double core pull, double
check valve on cores to lock in hydraulic pressure, Xaloy 102 barrel &
D2 screw, power capacitors, (4) 575V 20 Amp outlets, (2) 115V 15 Amp
duplexes, level 2 software, Microplast/Microflow, Micrograph Plus, PD
Graphics and Reports, ejector back confirmation signal, (2) mold
temperature monitoring zones, (8)
additional mold temperature control zones (230/1/60V - 15 Amp),
closed loop feed trhroat monitoring, extra 8-zone temp card, Engel robot
interface, SPI communications to auxiliary, dry contact for color feeder.
Terms: 25% with written PO
to secure equipment, cashiers check prior to shipment on balance.
Price: $54,450
SOLD
Comments: We believe these
specifications to be correct, however, they cannot be
guaranteed, and we invite your inspection.
