60 Ton 1.6 Oz LIM with EC 100
Stock Number: 1230
Engel ES 80/60 TL
Age: 1997

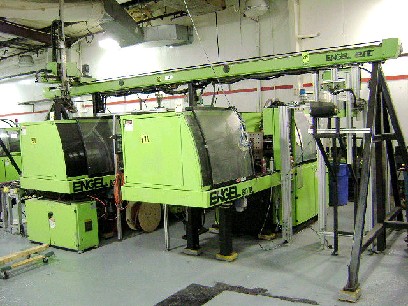

Click to view larger photo
Request a quote on stock# 1230
| Specification | Description |
|---|
| Clamp Force: | 60 US Tons |
| Shot Size: | 1.6 Oz/25 mm |
| Platen Size: | 25.60"" x 16.93"" |
| Tie Bar Spacing: | NA |
| Min/Max Daylight: | 7.48" - 20.47" |
| Min/Max Mold Ht: | 7.48" - NA |
| Clamp Stroke: | 13" |
| Ejector Stroke: | 3.94" |
| Voltage: | 460 |
| Dimensions: | 146" x 56" x 76" |
| Weight: | 9,600 lbs |
| Location: | Midwest |
Equipped With:
EC 100 A02
Extended frame.
Increased daylight to 24.47"/Min 11.48"
Filtroil
QMC System
Pneumatic valve gate control
Complete LIM Package:
- Xaloy 102 Barrel with Water Jackets
- D2 Thu-hardened LIM screw
- Water cooled shut-off nozzle
- (4) 240/1/60 10 Amp on moving platen
- (2) 240/1/60 10 Amp on stationary platen
Smaller than standard inj unit
Water flow control
Robot interface
SPI Robot interface
Level 2 software
Micrograph Plus
PD Graphic & Reports
Interface to host computer
Additional cycle start switch (robot guard)
Output signal for LIM pump
