145 Ton 3.7 Oz LIM Machine with EC 100
Stock Number: 1242
Engel VC 330/145 Tech US
Age: 2004

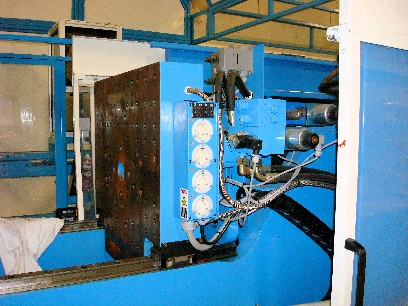

Click to view larger photo
Request a quote on stock# 1242
| Specification | Description |
|---|
| Clamp Force: | 145 |
| Shot Size: | 3.7 Oz |
| Platen Size: | 29.53" x 29.53" |
| Tie Bar Spacing: | NA |
| Drop Area Between C-Frame | 21.26" |
| Max Daylight: | 35.43" |
| Min/Max Mold Ht: | 11.81" - NA |
| Clamp Stroke: | 23.62" |
| Ejector Stroke: | 5.91" |
| Voltage: | 460 |
| Dimensions: | 218" x 67" x 87" |
| Weight: | 21,600 lbs |
| Location: | Midwest |
| | |
| Cost new of molding machine: | $147,271 |
| | |
Equipped With:
EC-100 Closed loop control
Complete LIM Package including:
- Water cooled pneumatic shut-off nozzle (Fluid Automation)
- Diving nozzle tip (15 mm) + 1/2"r modular tip
- Bi-metalllc barrel with water cooling
- Thru-hardened screw with special LSR check valve
- Mechanical stroke limiter
Preparation for shut-off nozzle
Includes software, valve and plumbing
Interface for vacuum system
Vacuum device including valve and pump
Vacuum monitoring program
Water flow control
Filtroil unit
Water cooled moving platen
Water cooled stationary platen
LIM decompression software
Single core pull
Air blow
Water filter assembly for cold deck
Demolding device interface
2 KM Pump interface
Additional 8 zone heat card
Interface card for data acquisition
Interface for Elmet demolding device
24 Pin plug for Elmet device
ERC robot interface
Freely programable cycle sequence
Process Data - Grapics & Reports
Microplast/Microflow
Micrograph Plus
Printer recepticle
Water flow control - 8 Circuit
