Vertical Rotary 200 Ton 3.7 Oz with CC 100 - Rubber or Plastic
Stock Number: 1260
Engel ES 330/200 VHRB
Age: 2002

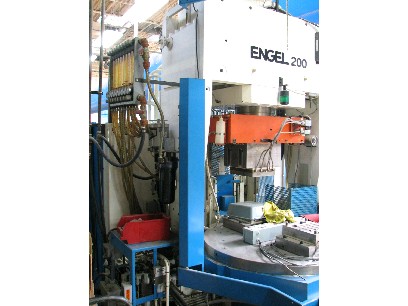

Click to view larger photo
Request a quote on stock# 1260
| Specification | Description |
|---|
| Clamp Force: | 200 US Tons |
| Shot Size: | 30 mm/3.7 Oz |
| Platen Size: | 31.89" x 17.72" |
| Tie Bar Spacing: | NA |
| Min/Max Daylight: | 15.75" - 31.5" |
| Min/Max Mold Ht: | 15.75" - NA |
| Clamp Stroke: | 15.75" |
| Ejector Stroke: | 6.3" (penetration 3.1") |
| Ejector force: | 1.8 US Tons |
| Rotary table dia: | 46.46" with 2 or 3 Position |
| Mold pitch cir dia: | 25.59" |
| Voltage: | 460 or 575 |
| Dimensions: | 135" x 106" x 121" |
| Weight: | 32,000 lbs |
| Location: | Midwest |
| Cost new | $246,700 |
Equipped With:
CC 100 Closed loop control
Current screw 30 mm/3.7 Oz @ 30,000 PSI
Machine can easily be converted to thermoplastic or LIM.
Shot size can be increased to 35mm/5 Oz, 40 mm/6.5 Oz or 45 mm/8.3 Oz
Currently set up to mold rubber with:
- Water cooled bi-metallic barrel
- (4) Mold heat zones - 2 on the stationary platen & 2 on the moving platen
- Water cooled open nozzle
- Program for mold venting
- Cold pot ITM program
- Pneumatic shut-off nozzle
- 6L Silicone hydraulic stuffer with water heating zone
- Closed loop control for stuffer with pressure transducer and amplifier
- Vacuum device with software and electrics
- Vacuum gauge and vacuum switch
- Preparation for brush assembly
- Hydraulically actuated mold valve gate with shut-off via accumulator
Other options include:
- (3) 460 Volt outlets @ 20 Amps each
- Vertical beam light curtain
- 2 Position rotary table
- 8 Extra heat zones with 1 extra heat card
- ERC Robot interface
- Automatic heat zone start up with 7 day timer
- SPI Communications protocol for auxiliary
- Filtroil
- Special Blue/Grey paint
- Special purging software
- Waterflow controls
- Closed loop feed throat control
