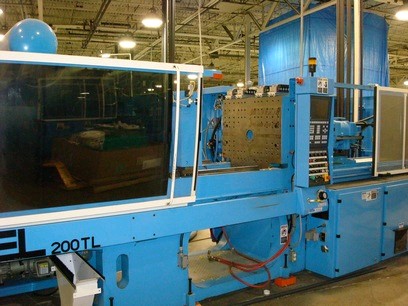

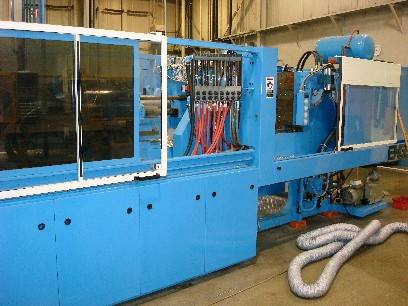

200 Ton 6.5 Oz LIM Machine with EC 100
Stock Number: 2000
Engel ES 330/200 TL
Age: 2003
Click to view larger photo
Request a quote on stock# 2000
| Specification | Description |
|---|
| Clamp Force: | 200 |
| Shot Size: | 6.5 Oz |
| Platen Size: | 35.43" x 29.53" |
| Tie Bar Spacing: | NA |
| Drop Area Between C-Frame | 25j.2" |
| Min/Max Daylight: | 9.84" - 37.40" |
| Min/Max Mold Ht: | 9.84" - NA |
| Clamp Stroke: | 27.56" |
| Ejector Stroke: | 6.9" |
| Voltage: | 460 |
| Dimensions: | 229" x 73" x 89" |
| Weight: | 25,350 lbs |
| Location: | Midwest |
| Cost new: | $185K |
Equipped With:
EC-100 Closed loop control
Complete LIM Package including:
- Water cooled pneumatic shut-off nozzle
- Bi-metalllc barrel with water cooling
- Nitrided screw with special LSR check valve
- Mechanical stroke limiter
Preparation for shut-off nozzle
Includes software, valve and plumbing
Interface for vacuum system
Vacuum device including valve and pump
Vacuum monitoring program
Water flow control
Filtroil unit
Water cooled moving platen
Water cooled stationary platen
LIM decompression software
Single core pull
Air blow
Water filter assembly for cold deck
Demolding device interface
2 KM Pump interface
Additional 8 zone heat card
