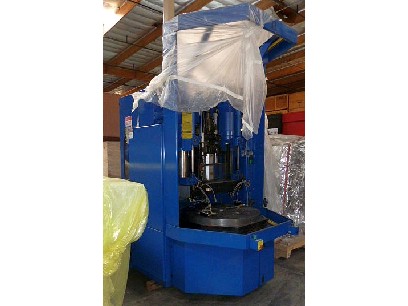

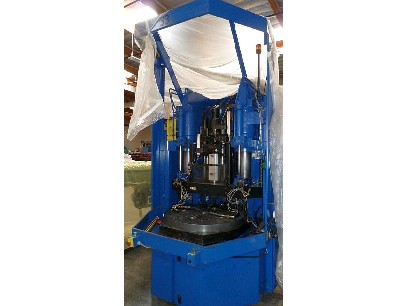

Engel Vertical/Vertical Rotary 60 Ton 1.6 Oz with CC 100 Control - ES 80/60 VVRB
Stock Number: 3146
Engel ES 80/60 VVRB
Age: 1998
Click to view larger photo
Specification
Description
Clamp Force:
60 US Tons
Shot Size:
1.6 Oz/25 mm
Platen Size:
27.5" x 17.7
Tie Bar Spacing:
NA
Max Daylight:
7.48" - 21.26"
Min Mold Ht:
7.48"
Clamp Stroke:
13.78"
Ejector Stroke:
5" - 2" Penetration

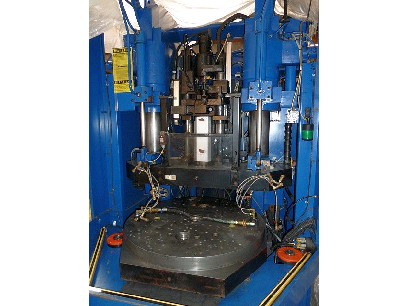

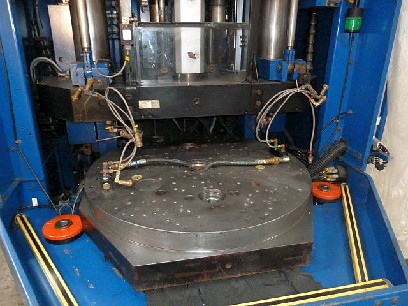

Rotary table dia:
38.38"
Voltage:
460 V
Dimensions:
127" L x 80"W x 121"H
Weight:
16,000 lbs
Location:
S CA
Equipped With:

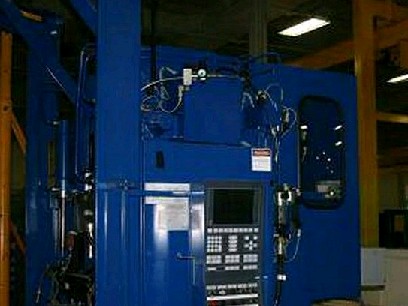

CC 100 Control
2 or 3 Possition rotary table
Filtroil
Hydraulic valve gate
Light curtain
Mold venting program
Prepared for Gum Rubber conversion
Level 2 software
Micrograph Plus
Process Data & - Graphics & Reports
Mold temp monitor zone
(10) Additional PID Mold temp control zones
(2) Epic mold heat plugs
(2) Extra 8 Zone temp cards
RC 100 Robot interface
SPI Communications protocol for auxiliary
Vacuum/Nitrogen solenoid activated by clamp position
Elast software
