85 Ton 2.2 Oz with CC 90 + Star Servo Robot
Stock Number: 3189
Engel ES 200/85 BH
Age: 1996
Only 6,600 Hours - Like New -
Only run clear PC in
R & D Environment

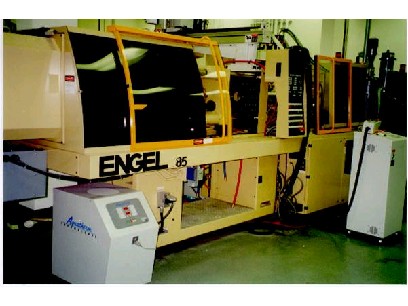

Click to view larger photo
| Specification | Description |
|---|
| Clamp Force: | 85 US Tons |
| Shot Size: | 2.2 Oz/25 mm |
| Shot Size Can up upsized to | 3.2 Oz/30 mm or 4.4 Oz/35 mm |
| Platen Size: | 22.44" x 21.73" |
| Tie Bar Spacing: | 15.94" x 13.58" |
| Min/Max Daylight: | 5.91" - 29.13" |
| Min/Max Mold Ht: | 5.91" - 16.93" |
| Clamp Stroke: | 12.2" |
| Ejector Stroke: | 3.94" |
| Voltage: | 460 |
| Dimensions: | 165" x 52" x 80" |
| Weight: | 8,500 lbs |
| Location: | CA |
Equipped With:
Star T-650 HM-U robot
CC 90 Closed Loop Control with Servo Valve
Hi Speed Injection (selectable)
Coining
SPI Robot interface
SPI Communications to dryer & MTC
Xaloy 102 Barrel
D2 Screw
Air Blow
Level 2 Software
Microplast/Microflow
Micrograph
Process Data Graphics & Reports
PID Temp Control
Thermal Care RA Mold Temp Controller
Thermal Care 2 ton Air Cooled Chiller
LaRos Conveyor E-510
Dri-Air Drying System PD-3 with 2 Loaders
