2012 Engel Elast 200 Ton with 430 cc Inj Unit  with CC 200 - Elast 430/200 VC US


2012 Engel Elast 200 Ton with 430 cc Inj Unit with CC 200 - Elast 430/200 VC US

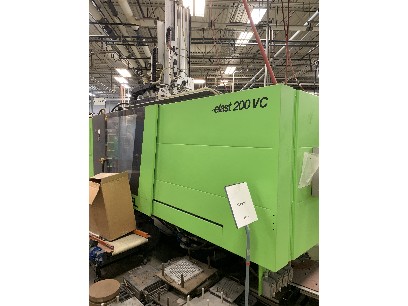

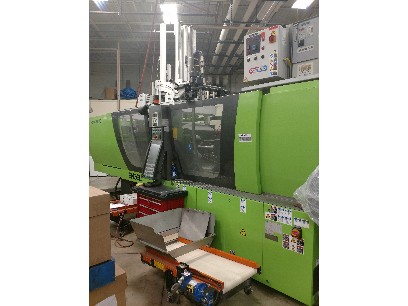

Engel Elast 430/200 VC US

Age: 2012

Stock Number: 3880





Click to view larger photo


SpecificationDescription
Clamp Force: 200
Injection Volume:430/570 ccm
Screw Diameter/LD:25 mm/10-1
Optimal Strip Dimensions:30 x 6 mm
Heating Platen:19.68" x 25.59"
Distance Between Heating Platen:31.1"
Drop Area Between C-Frame26.37"
Min Mold Ht: 3.54" Confirm
Clamp Stroke: 27.55"
Side Ejector Stroke:9.84"
Center Ejector Stroke: 5.9"
Voltage: 460
Dimensions: 214" x 70" x 95" Confirm
Weight: 25,350 lbs

Equipped With:

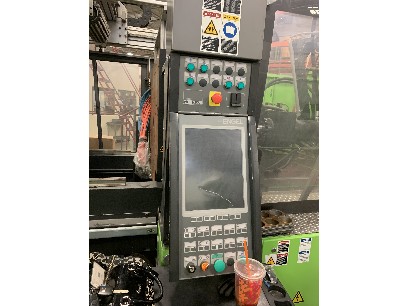

CC-200 Control
FIFO Inj Unit with 430 cc Volume
Automatic Strip Feeder with Strip Guiding Rollers
Hydraulically Operated Side Ejector
(4) Pneumatic Valve gates with Control -= (8) Circuits
Brush Module with Electrically Driven Brush, Fixed Brush Head, Titable Dual design
(2) Service Outlets - 115/1/60 2A
(2) Outlets for MTC's 480V/15A
(1) Outlet for Vacuum Pump 480V/15A
(6) Heat Zones for Mold Heaters on Fixed Plate
(6) Heat Zones for Mold Heaters on Moving Plate
(2) Additional Temperature Control Cards for 8 additional Heating Zones
Accoustic Alarm with Lamp
(3) Electrical Outlets 460/3/60, 20 A
Transformer for mold Heat Zones at 230V, 9 - 16 Zones
Access Rights with Keycard
Interface for Freely Programmable Dry Contacts
Interface & Program for (2) Brushing Modules
SPI Interface for Temp Control Unit, SPI RS485
PD Graphics I
Program Virt Mold
Service Box for e-service 24
Vacuum Device with 3/4" Vacuum Valve and Pump 25m3/h Capacity
Vacuum monitoring Including Program & Vacuum Switch
Pressure Trnsducer for Vacuum Monitoring
Air Blow with Prtessure Limiter
Connection for Air Gun Operator Side
