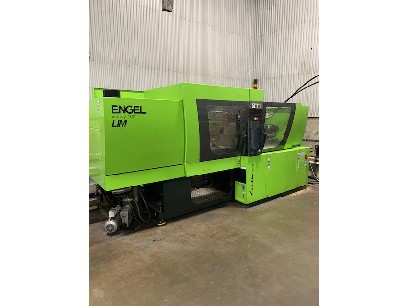

2015 Engel 100 Ton 3.35 Oz Tiebarless LIM with CC 300 - Victory 200/100 Tech LIM US


2015 Engel 100 Ton 3.35 Oz Tiebarless LIM with CC 300 - Victory 200/100 Tech LIM US

Engel Victory 200/100 Tech LIM US

Age: 2015

Stock Number: 4005





Click to view larger photo


SpecificationDescription
Clamp Force: 100 US Tons
Shot Size: 3.35 Oz/30 mm

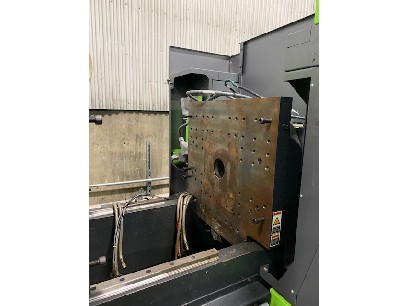

Platen Size: 29.13" x 26.77"
Discharge Chute Width:19.69"
Max Daylight: 31.50"
Max mold Weight Moviing Platen:1764 lbs
Min Mold Ht: 11.81
Clamp Stroke: 19.69"
Ejector Stroke: 5.12"
Voltage: 460
Dimensions: 55.2"W x 78.7"H (Confirm L)
Weight: 14,200 lbs

Equipped With:

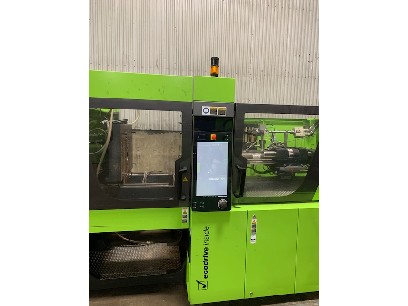

Microcomputer CC300 package including:

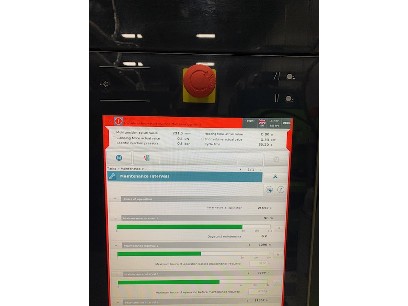

- visualisation on 21,5"-full-HD color touch-screen with high sensitivity
- ergonomic screen position with automatical adjustment
- user authentication system acc. to Euromap 65
incl. 3 keycards
- intuitive and quick navigation with component and
task oriented operating concept
- e-move central control knob for one-touch operation
and sensitive motion control
- individual assignment of functions for configurable
manual keys
- programmable cycle sequence via graphic symbols
- optic fault indicator on the control console
- USB interface for data storage device
- Ethernet network interface
- configurable screen pages
- notepad
- weekly timer
- Process Data Record
- Micrograph
- Microplast
screen language 1: - english
screen language 2: - spanish

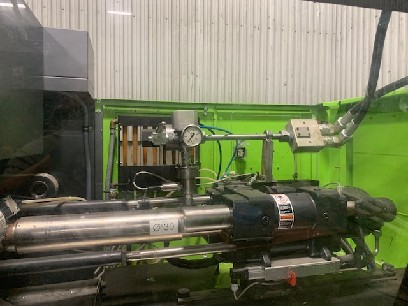

LSR-package (instead of thermoplastic equipment) consisting of:

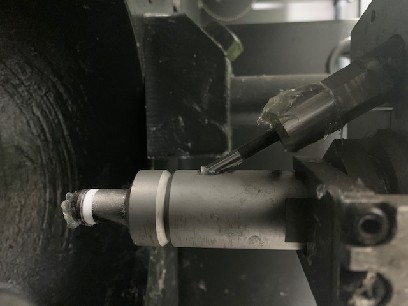

- bi-metallic (M3), water cooled barrel, L/D=16
- nitrided (S1) screw including spring-loaded check disk 30 mm diameter
- material pressure gauge in material feeding
- preparation for material filter packet (housing only)
- preparation for pneum.material shut-off valve 1/2"
(electrical equipment, software and pneumatics)
- injection pressure limited in manual operating mode
- program flushing with LSR component
- program evacuation
(incl. the required inputs and outputs)
- screen text "cure time" instead of "cooling time"
meshes for LSR filter consisting of different mesh sizes
interface and program for ejection-handling,
including tripple corepull
connected to 24-pin HTS on stationary platen,
including manual buttons for movements.
preparation for pneumatic shut-off nozzle
incl. solenoid operated pneumatic valve
and air maintenance unit,
brand Fluid Automation
OPT116901
flow control device for cold runner systems
(mold heaters inactive at missing cooling
water)
preparation pneumatic shut off nozzle, brand Fluid included Automation
Type SN12-8A-125-587
acoustic alarm combined with lamp
PD-graphics I
continuous, graphical monitoring of process parameters,
transformer, stand-alone
22,5 kVA for mold heatings 230V
water flow control manifold 8 circuits
0-10 l/min.
vacuum pump with 25m3/h capacity, incl. vacuum valve
vacuum monitoring on moving platen
setting and monitoring via machine controller
vacuum valve combined with release valve, 3/4
pneumatic air supply maintenance unit
for customer-supplied pneumatics
(filter, regulator)
solenoid operated pneumatic valve 2/2-ways
R1/4 inch ports, located on moving platen,
for airblow only (without hosing)
8 zone mold heating control
Euromap 14
total heating power up to 15 kW
mould heatings are split in equal numbers
to the moving and stationary platen
pneumatic valve gate control, 4 fold
injection unit swiveling
servo valve for injection speed, follow up
pressure and back pressure
hydraulic package ECODRIVE - SHV1
- with excellent energy efficiency by
high dynamic servo pump.
- closed-loop control of volume and pressure
by pump speed.
- servo valve for control of injection process.
Interface for robot/automation
does not include power supply receptacle
(Euromap 67 / AN-146)
Interface for freely programmable dry contacts
(terminal strip)
(4x digital output, 4x digital input)
