2017 Engel 340 Ton 24.8 Oz Tiebarless Machine with CC 300 - Victory 1800/340 Hy-Spex
Engel Victory 1800/340 Hy-Spex
Age: 2017
Stock Number: 4021
Under Power - Only 18,000 Hours

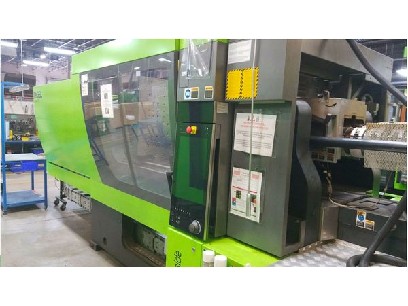

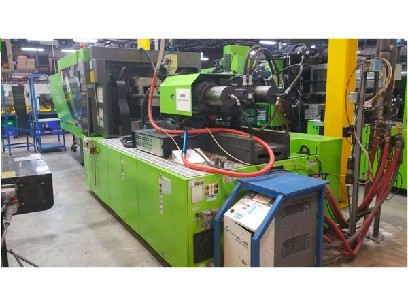

Click to view larger photo
| Specification | Description |
|---|
| Clamp Force: | 340 |
| Shot Size: | 24.8 Oz |
| Platen Size: | 43.3" x 39.7" |
| Tie Bar Spacing: | NA |
| Drop Area Between C-Frame | 29.53" |
| Max Mold Wt Moving Platen: | 4,850 lbs |
| Maximum Daylight: | 51.18" |
| Min/Max Mold Ht: | 15.75" - 35.4" |
| Clamp Stroke: | 35.43 |
| Ejector Stroke: | 7.87" |
| Voltage: | 460 |
| Dimensions: | 284.17"L x 81.05"W x 97.17"H |
| Weight: | 42,800 lbs |
Equipped With:
CC 300 Closed Loop Control
Ecodrive
Core Pull
Pneumtic Valve Gate
Air Blow
Interface for Ejector Back Confirmation
Robot Interface
(4) programmable I/O's
Ceramic Heater Bands
Freely Programmable Sequence Editor
