2014 Engel 240 Ton Tiebarless 5 Oz and 3.2 Oz with 38 Rotary with CC 200 - VC 330H/200L/240 Combi


2014 Engel 240 Ton Tiebarless 5 Oz and 3.2 Oz with 38" Rotary with CC 200 - VC 330H/200L/240 Combi

Engel VC 330H/200L/240 Combi

Age: 2014

Stock Number: 4040


Only 3,000 Hours


Click to view larger photo


SpecificationDescription
Clamp Force: 240 US Tons
Shot Size: 5 Oz/35 mm
Primary inj unit can be upsized to:40 mm/8.2 Oz
Shot size/2nd inj unit3.2 Oz/30 mm
Secondary inj unit can be upsized to:4.4 Oz/35 mm
Platen Size: 38.5" x 38.5"
Tie Bar Spacing: NA
Rotary Table Diameter38"
Min/Max Daylight: 19.69" - 49.21"
Clamp Stroke: 29.53"
Ejector Stroke: 7.09"
Voltage: 460V
Dimensions & weight press:: 231" x 76" x 83", 30,000 lbs
Dimensions & weight 2nd inj unit:55"L x 44"W, 3,640 lbs

Equipped With:

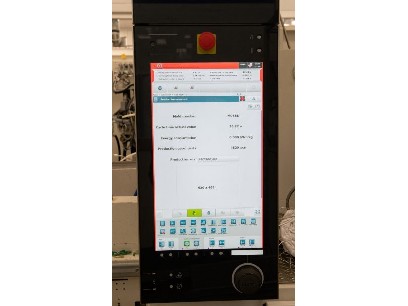

CC 300 Control
Robot Interface

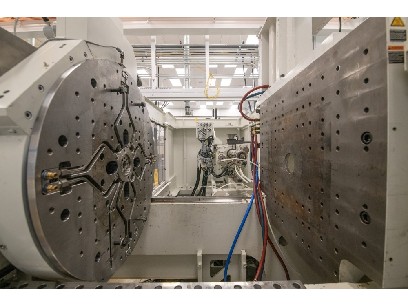

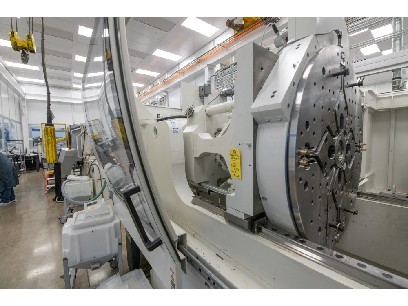

Rotary Table
Frame Extension 200 mm
Double Hydraulic Core Pull on Moving Platen
(2) Pneumatic Valve Gate on Moving Platen
(2) Pneumatic Valve Gate on Stationary Platen

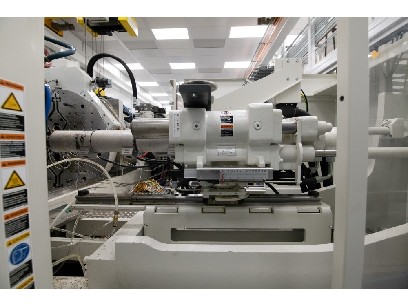

Swiveling Injection Unit(s)
M3 Bi-Metallic Barrel(s)
S1 Screw(s)
Ceramic Heater Bands
HV2 Hydraulic Package with Smart Pumps and Closed Loop Control
PD Graphics I
Ecograph
Interface for RJG edart
Water Manifold
Grey White Paint RAL 9002
Interface for Robot/Automation
Interface for Freely Programmable Dry Contacts
