Request a quote on stock# 1257| Specification | Description |
|---|---|

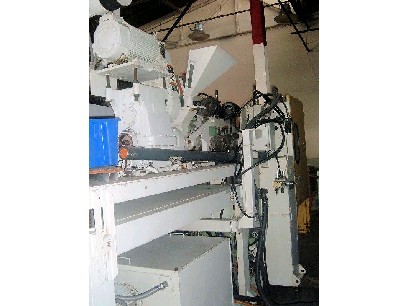

| Extruder | |
| Screw diameter | 60 mm |
| Screw ratio | 24/1 |
| Screw speed range | To advise |
| Screw rating | |
| Drive | 30 HP DC Brushless |
| Output capacity PE | 170 KG/hr HDPE |
| Connected load | To advise |
| Ave energy consumption | To advise |

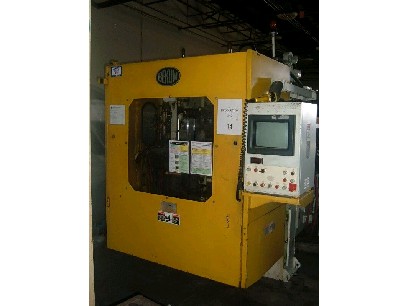

| Blow Molder | |
| Mold closing force | |
| Horizontal stroke of clamping unit | 570 mm |
| Dry cycles per mold | 2.8 seconds |
| Cycles per minute | 9 |
| Mold size (l x w x h) | 14.7" x 7.87" x 3.94" |
| Maximum Bottle | 3 Liters |
| Daylight opening | 7.87" |
| Centerline distance | 3.93" (2 Parison) |
| 2.3" (3 Parison) | |
| Voltage: | 460 |
| Location: | West Coast |
| Color: | Light gray |
