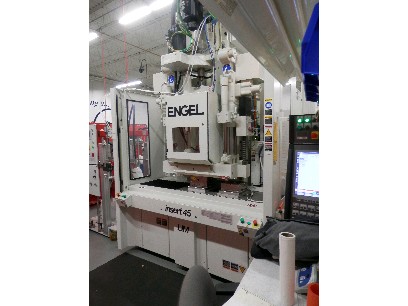

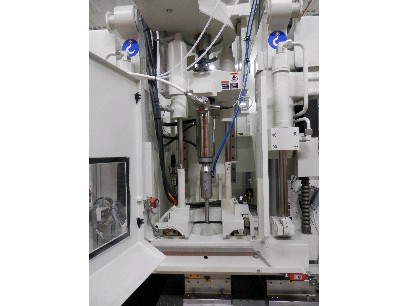

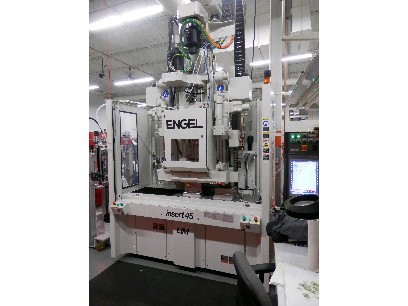

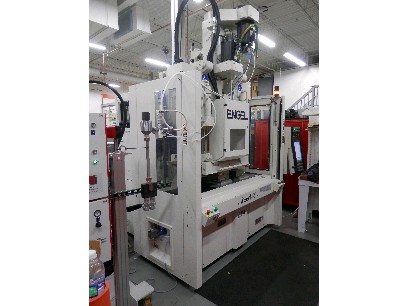

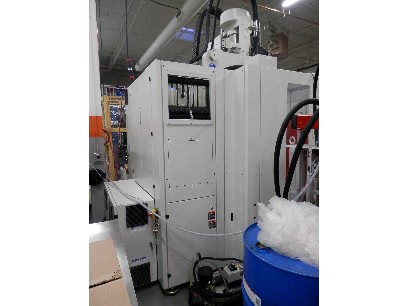

Engel Vertical/Vertical Shuttle 45 Ton .6 Oz LSR with CC 200 Control - e-insert 80/45 US
Stock Number: 3342
Engel e-insert 80/45 US
Age: 2011
Never in production - under power
Click to view larger photo
| Specification | Description |
|---|
| Clamp Force: | 45 US Tons |
| Shot Size: | .6 Oz - 17g/15 mm |
| Screw can be upsized: | .81 Oz - 1.23 Oz - 1.59 Oz |
| Platen Size: | 37" x 15.7" |
| Tie Bar Spacing: | NA |
| Max Daylight: | 20.05" |
| Min Mold Ht: | 7.48" |
| Clamp Stroke: | 12.99" |
| Ejector Stroke: | 4.3" - 2.26" Penetration |
| Shuttle Table Stroke: | 33.5" |
| Shuttle Table Sliding Time: | 3.5 S |
| Max Mold Weight Shuttle Table:: | 2205 lbs |
| Max Mold Weight Moving Platen: | 772 lbs |
| Voltage: | 480 V |
| Dimensions: | 94" L x 67"W x 126"H Confirm |
| Weight: | 16,000 lbs |
Equipped With:
CC 200 Control A02
Electric screw drive - independent function
Lubrication for inj unit
Water flow control - 8 zone
2 Position shuttle table
LSR Package including:
- Fluid Automation water cooled shut-off nozzle
- Pressure transducer on at feed throat with on screen readout
Light curtain
- Filter pack
- Vacuum system interface for mold
- Pumping unit interface
Medical white paint & prep
12 Zone mold heating control zones
Connectors for mold heat zones:
- 4 Moving platen
- 4 Shuttle table left side
- 4 Shuttle table right side
Accoustic alarm with light
Access with key cards
Ecograph
PD Graphics II
Minicam
115V Outlet (2A)
Air blow on moving platen

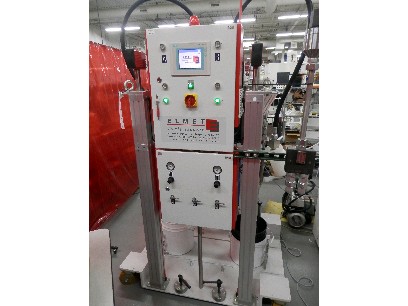

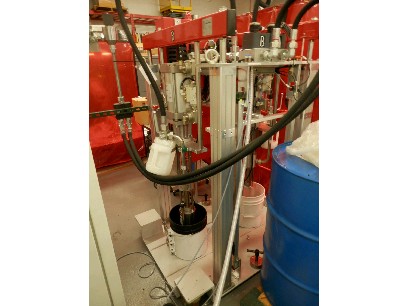

Elmet model TOP 3000 5/55 Gallon Meter Mix System
