Engel 550 Ton 83.1 Oz with CC 90 - ES 3500/550

Engel 550 Ton 83.1 Oz with CC 90 - ES 3500/550

Stock Number: 3384

Engel ES 3500/550

Age: 1990



                     Additional Info on Engel 550 Ton 83.1 Oz with CC 90 - ES 3500/550

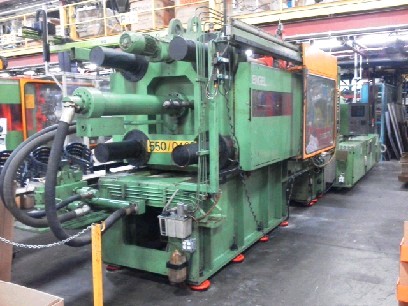

Click to view larger photo

SpecificationDescription
Clamp Force: 550 US Ton
Shot Size: 83.1 Oz/90 mm
Platen Size: 48.03" x 48.03"
Tie Bar Spacing: 31.5" x 31.5"
Min/Max Daylight: 12.2" - 64.96"
Min/Max Mold Ht: 12.20" - 31.49"
Clamp Stroke: 33.46"
Ejector Stroke: 9.84"
Voltage: 460V
Dimensions: 445" x 95" x 102" (confirm)
Weight: 73,340 lbs

Equipped With:

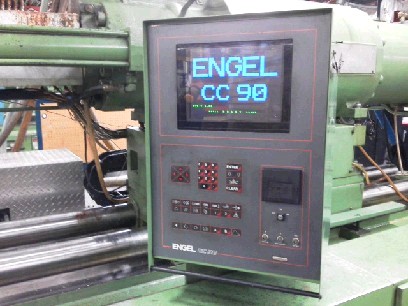

CC-90 Closed loop control
Core Pull
QMC
Filtroil
Mechanical stroke limiter
Microplast
Hydraulic valve gate control
Monitor replaced 2011_01
Motor #2 replaced 2006_09
Recent calibration & check out by Engel tech
