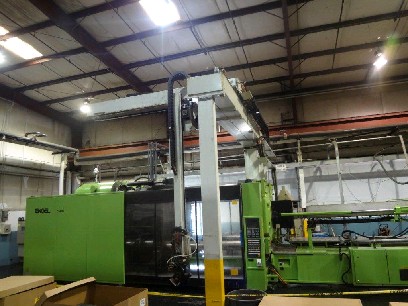

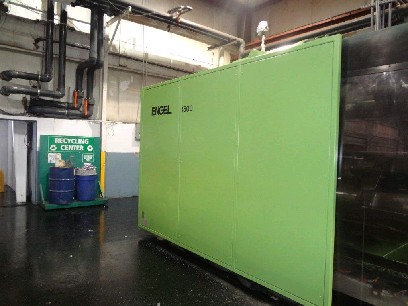

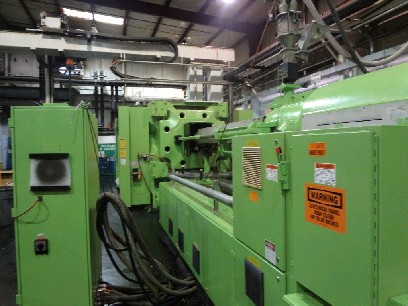

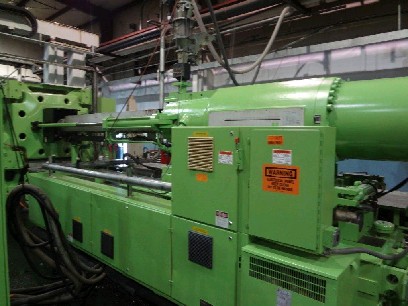

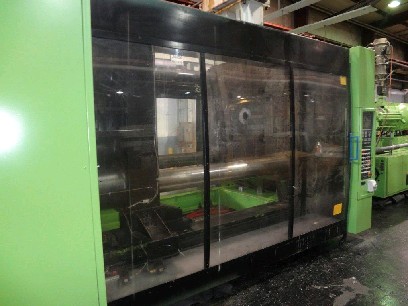

Engel 1500 Ton 348 Oz Wide Platen with CC 100 Control - ES 14000/1500
Stock Number: 3444
Engel ES 14000/1500 DK
Age: 1998
Under power
Click to view larger photo
| Specification | Description |
|---|
| Clamp Force: | 1500 US Ton |
| Shot Size: | 348 Oz/150 mm |
| Platen Size: | 88.58" x 76.77" |
| Tie Bar Spacing: | 60.24" x 50.2" |
| Min/Max Daylight: | 27.56" - 120.08" |
| Min/Max Mold Ht: | 27.56 - 55.12 |
| Clamp Stroke: | 64.96" |
| Ejector Stroke: | 13.78" |
| Ejector Force: | 31.47 Tons |
| Voltage: | 460 |
| Dimensions: | 634"L x 126"W x 124"H |
| Weight: | 59,400/173,800 |
Equipped With:
CC 100 Control

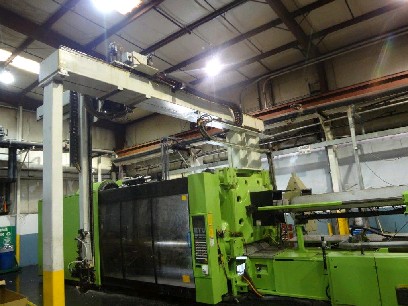

ENGEL Servo robot w/wrist rotation; new 2002
Anti-abrasion screw & barrel kit; new one year ago
Rebuild of injection drive system 2 years ago.
Dual function hydraulics - independent inj/clamp 3 core pulls 4 air blow circuits 1 valve gate
