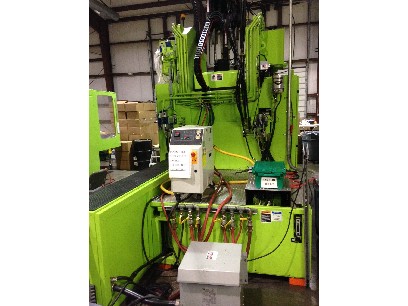

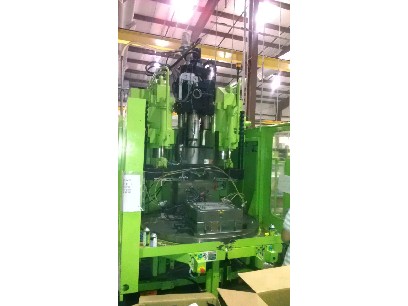

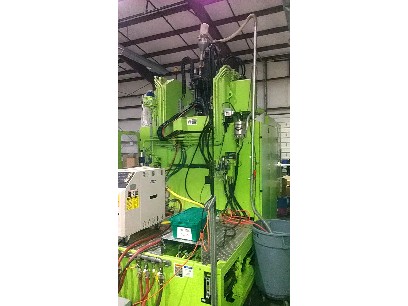

Engel Vertical Rotary 150 Ton 10.3 Oz with EC 100 - Insert 500V150 US
Stock Number: 3454
Engel Insert 500V150 US
Age: 2007
Only 18,000 hours
Click to view larger photo
Specification
Description
Clamp Force:
150 US Tons
Shot Size:
10.3 Oz/45 mm
Platen Size:
31.5" x 21.65"
Tie Bar Spacing:
NA
Min/Max Daylight:
7.48" - 25.2"
Min/Max Mold Ht:
7.48" - NA
Clamp Stroke:
17.71"
Ejector Stroke:
5.9" (penetration 3")
Ejector force:
4.3 US Tons
Rotary table dia:
62" with 2 Position
Mold pitch cir dia:
35.83"
Voltage:
460
Dimensions:
158" x 94" x 152"
Weight:
24,400 lbs
Equipped With:
Vertical Clamp/Vertical Injection

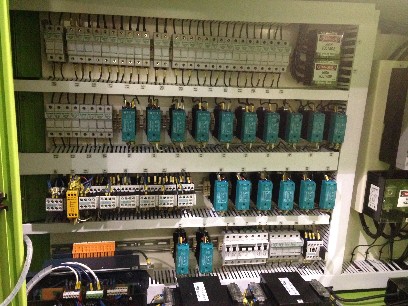

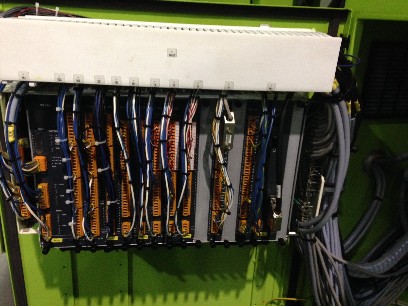

EC 100 Control

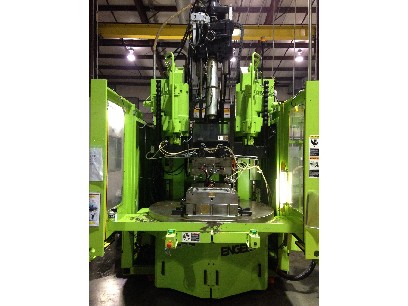

2 Position Rotary Table - 180 Rotation
QMC on Moving Platen
2 Air Blow Circuits
Single Channel Rotary Union
Extra Heat Zone for Hot Sprue - 20A
12 Zone Mold Heat Control - 2 Add Heat Cards
Westland Screw & Barrel assembly with Water Jackets + Water Cooled Nozzle
Light Curtains
