Engel Vertical/Vertical Rotary 90 Ton 2.2 Oz with CC 100 Control - ES 200/90 VV
Stock Number: 3552
Engel ES 200/90 VV CC100 EL A03
Age: 2002
Click to view larger photo
| Specification | Description |
|---|
| Clamp Force: | 90 US Tons |
| Shot Size: | 2.2 Oz/25 mm |
| Max Inj Pressure | 30,000 PSI |
| Platen Size: | 27.5" x 17.7 |
| Tie Bar Spacing: | NA |
| Max Daylight: | 7.48" - 21.26" |
| Min Mold Ht: | 7.48" |
| Clamp Stroke: | 13.78" |
| Ejector Stroke: | 3.1" Penetration |
| Pirch Circle: | 650 mm/25.59" |
| Rotary Table Dia: | 46.45" |
| Voltage: | 460 V |
| Dimensions: | 137" L x 93"W x 142"H |
| Weight: | 17,000 lbs |
| Cost New: | $262,330 |
Equipped With:

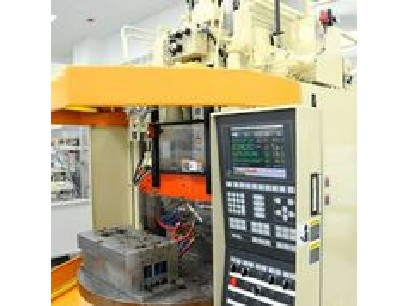

CC 100 A03 Control
2 or 3 Position Rotary Table
Rotary Union
Xaloy 800 Barrel
D2 Screw
6 Channel Waterflow
Hydraulically Actuated Valve Gate
Special Sequencing for Valve Gate
Capacitors
(2) 460V - 30 Amp Outlets
(1) 115 V - 15 Amp Outlet
Hydraulic Circuit for Slides in Mold
Special Sequence for Mold Slides
Special Valving for Hydraulic Circuits on Rotary Table

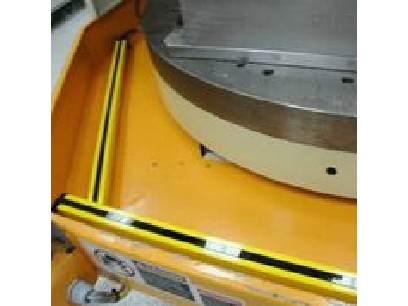

Light Curtain
Microplast/Microflow
PD Graphics & Reports
(8) Additional PID Mold Temp Zones
Additional 8 Zone Temp Card
SPI Communication for Auxiliary Devices
Kistler Cavity Pressure Transducer Amplifier
Filtroil
