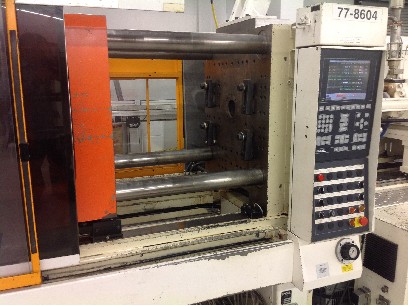

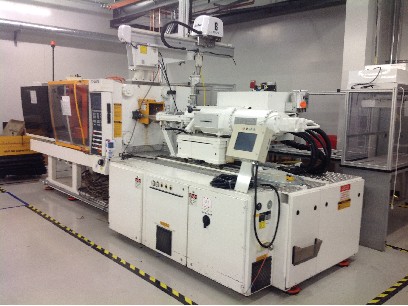

Engel 250 Ton 18.4 Oz with CC 100 EL Control - ES 700/250

Engel 250 Ton 18.4 Oz with CC 100 EL Control - ES 700/250

Stock Number: 3614

Engel ES 700/250

Age: 1996

Robot not included

                                                        Additional Info on Engel 250 Ton 18.4 Oz with CC 100 EL Control - ES 700/250
Click to view larger photo

SpecificationDescription
Clamp Force: 250
Shot Size:18.4 Oz/60 mm
Also Includes:8.2 Oz/40 mm S & B

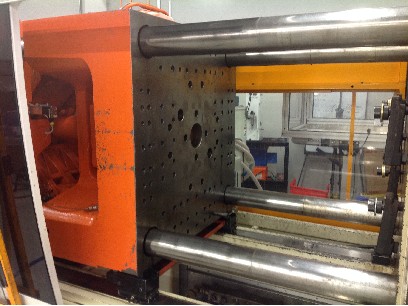

Platen Size: 32.68" x 32.68"
Tie Bar Spacing: 22.44" x 22.44"
Min/Max Daylight: 7.87" - 44.09"
Min/Max Mold Ht: 7.87" - 28.02"
Clamp Stroke: 20.08"
Ejector Stroke: 5.91"
Voltage: 460
Dimensions: 248" x 70" x 89"
Weight: 26,100 lbs
Under PowerCan be seen in operation

Equipped With:

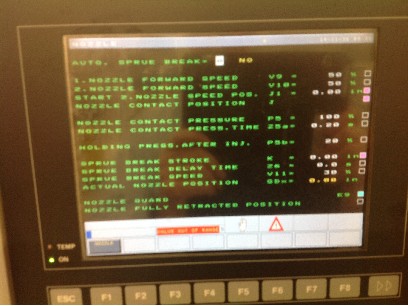

CC-100 EL Closed Loop Control
Spare 8.2 Oz Screw & Barrel
SPI Robot Interface
Printer Interface
Filtroil
Heater Transformer
Closed Loop Clamp Force Control
SS Feed Throat
