2005 Engel 450 Ton 2 Shot - 27.5 Oz and 3.7 Oz with CC 100 - TG 2050H/330L/450


2005 Engel 450 Ton 2 Shot - 27.5 Oz and 3.7 Oz with CC 100 - TG 2050H/330L/450

Engel TG 2050H/330L/450

Age: 2005

Stock Number: 3795


9,000 Hours - Like New

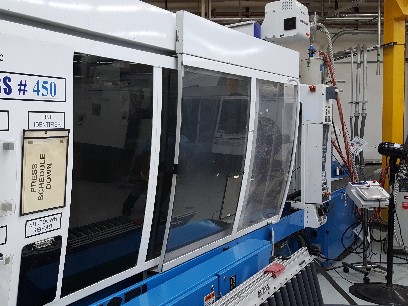

Click to view larger photo


SpecificationDescription
Clamp Force: 450 US Ton
Shot Size: 27.5 Oz/60 mm
Primary Inj unit can be upsized to:37.5 or 50.5 Oz
Shot size/2nd inj unit:3.7 Oz/30 mm
Secondary Inj Unit can be changed to:5 /6.5/8.3 Oz
Platen Size: 48.8" x 47.24"
Rotary table diameter:47.24" Confirm
Tie Bar Spacing: 34.6" x 33.07"
Min/Max Daylight: 11.81" - 61.50" TBC
Min/Max Mold Ht: 11.81" - 33.94" TBC
Clamp Stroke: 27.56"
Ejector Stroke: 9.45"
Voltage: 460V
Dimensions: 303" x 142" x 99"
Weight: 49,800 lbs

Equipped With:
CC-100 Closed loop control
L Configueration
2013 MGS Servo Rotary Table
(3) Core pulls
(35) Zone Hot Runner Control
SPI Robot Interface
Closed Loop Clamp Force Control
(2) Water Flow Controls
Filtroil
Valve gate Shut-Off
