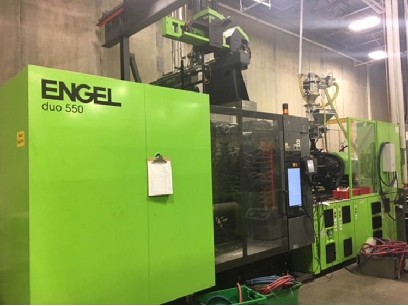

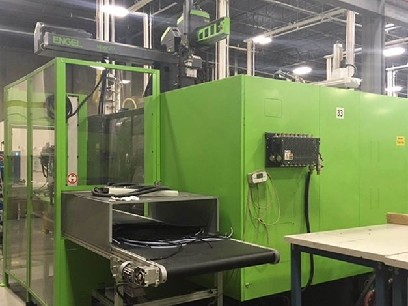

Engel 550 Ton 50.6 Oz with CC 300 - DUO 2550/550 US
Engel DUO 2550/550 US
Age: 2015
Stock Number: 3855
Click to view larger photo
Specification
Description
Clamp Force:
550 US Ton
Opening Force:
40.5 US Ton
Shot Size:
50.6 Oz/80 mm
Platen Size:
50" x 49.6"
Tie Bar Spacing:
35.8" x 32.7"
Tie Bar Diameter:
5.7"
Max Daylight:
65"
Min/Max Mold Ht:
13.8" - 35.4"
Clamp Stroke:
51.2"
Ejector Stroke:
9.8"
Mold Weight Max::
17,640 lbs
Voltage:
460
Dimensions:
287" x94" x 94"
Weight Clamp:
46,300 lbs
Weight Inj Unit:
16,530 lbs
Equipped With:
CC300 Closed Loop Control
with 21.5: HD Touch Screen
Single Core Pull Moving Platen
Single Core Pull Stationary Platen
Air Blow on Stationary Platen
Air Blow on Moving Platen
Pneumatic Valve Gate, 8 Fold
Interface for Colr Feeder
M3 Barrel (Bi-Metallic)
S13 Screw
Ceramic Heater Bands
Ecodrive SHV2
Acoustic Alarm
PD Graphics
Ecograph
Kistler Chrage Amplifier
Water Flow Control
Interface for Integrated Engel Robot
