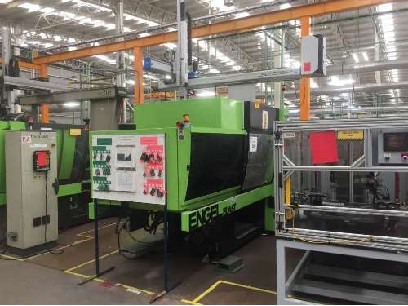

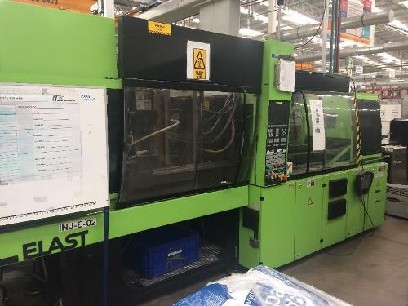

2004 Engel Elast 200 Ton with 280 cc Inj Unit with EC 100 - Elast 280/200 US
Engel Elast 280/200 US
Age: 2004
Stock Number: 4011
Click to view larger photo
Request a quote on stock# 4011
| Specification | Description |
|---|
| Clamp Force: | 200 |
| Injection Volume: | 280 ccm |
| Screw Diameter/LD: | Confirm |
| Platen: | 37.8" x 32.7 |
| Max Daylight: | 41.3" |
| Drop Area Between C-Frame | 26.37" |
| Min Mold Ht: | 11.8" |
| Clamp Stroke: | 27.55" |
| Ejector Stroke: | 9.8" |
| Voltage: | 460 |
| Dimensions: | Confirm |
| Weight: | Confirm |
Equipped With:
EC100 A03 Control with Upgraded Color LCD Screen
- Modular 32 bit microprocessor system
- Microprocessor temperature control cards with self-
optimizing controllers, with PID control behavior,
- Program Micrograf plus,
- Microplast
- PD Graphics & Reports
- QDP and QDS
- Freely programmable machine cycle.
With weekly timer, cycle time analysis with partial
time monitoring, fault message and parameter changes protocol, including evacuation program,
& venting.
- Integrated 3.5" floppy disk drive and editing
settings for printer connection, PC keyboard (text
pages) and temperature control units.
- QUICK SETUP program and graphic cycle time
analysis is included in the standard system.
- Screen text english
- 1 Temperature display stuffer chamber, to display the Chamber temperature in addition to the display of theTempering medium temperature
- 1 Fully hardened, abrasion-resistant screw
- 1 Bimetallic cylinder, abrasion resistant
- 1 Automatic silicone Stuffer 6000 ccm
- 1 Stuffer pressure control - closed control loop
- 1 QMC hydraulic incl. 1 set
- 1 servo valve control for injection unit
- 1 additional hydraulic pump and proportional valves
- 2 power connections 3-phase, 16 A, for temperature control devices, switched via weekly timer, and
- power connection 3-phase, 16 A, for vacuum pump
- 1 Supply voltage special 3X460V+PE/60HZ
- 1 Electrical connection 3-phase, 16 A (a total of 3 connections, plug mounting on closing side)
- 10 Control circuit for mould heating incl. thyristor,
Connectors and wiring
6 circuits on FAP, 4 circuits on BAP
Heaters laid on shockproof plug,
Probe on 4-pin HTS
- 1 expansion card TT081 with 8 additional
control zones
- 10 Tool sensor M10x1 with bayonet lock
- 1 service socket 120 volts (2 amps max.)
- 1 heating transformer for 230V heaters, mounted on
backside stuffer
- 1 EMERGENCY STOP button additionally on non- operator side
- 1 ETHERNET interface for use with EMS and Teleservice
- 1 Special program "Heat Calibration
- 1 Program and wiring for gas flushing (without valve)
- 1 Interface for Hefner demoulding device
installed on 16-pin HTS
- 1 Vacuum device, consisting of a vacuum pump with a capacity of 25 m3/h, including valve
- 1 Vacuum monitoring including program
- 3 Solenoid air valve (2/2-way, 1/2 inch)
(1 valve used for gassing function)
