Request a quote on stock# 4128| Specification | Description |
|---|---|
| Clamp Force: | 275 US Tons |
| Shot Size/Primary: | 10.2 Oz/45 mm/"A" Size |
| Can Be Used to: | 15.3 Oz/55 mm/"C" Size |
| Shot size/2nd inj unit | 7.4 Oz/45 mm |
| Distance between tiebars: | 24.8" x 24.8" |

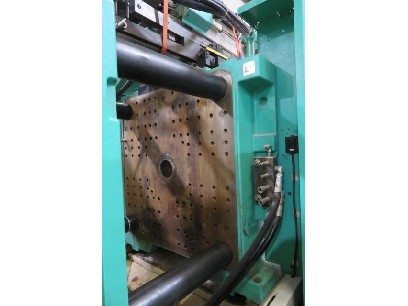

| Platen Size: | 35.4" x 35.4" |
| Mold Height (Min - Max) | 18.81 - 25.5" Confirm |
| Min/Max: | 9.84" - 29.53" |
| Ejector Stroke: | 8.85" |
| Max Daylight: | 51.1" Confirm |
| Voltage: | 460V |
| Dimensions & weight press:: | 172"L x 52"W, 8,030 ibs |
| Dimensions & weight 2nd inj unit: | Advise |
