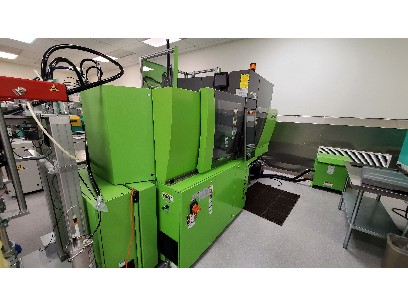

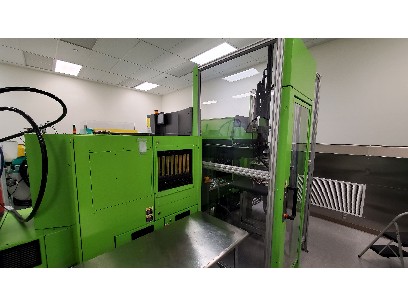

2015 Engel 55 Ton 1.79 TP/1.2 Oz LSR with CC 300 + Victory 200/50 Spex US

2015 Engel 55 Ton 1.79 TP/1.2 Oz LSR with CC 300 + Victory 200/50 Spex US

Engel Victory 200/50 Spex US

Age: 2015

Stock Number: 4143

Only 11,000 Hours - Like New Includes Engel e-pic robot, conveyor and enclosure


Click to view larger photo

Request A Quote On Our Stock Number: 4143 2015 Engel 55 Ton 1.79 TP/1.2 Oz LSR with CC 300 + Victory 200/50 Spex USRequest a quote on stock# 4143
SpecificationDescription
Clamp Force: 55 US Tons
Shot Size LSR: 18 mm/1.2 Oz
Could be upsized to:22/25/30 LSR
Shot Size Plastic:22 mm/1.79 Oz
Could be upsized to:25 mm/2.33 Oz or 30 mm/3.34 Oz
Platen Size: 19.69" x 17.72"
Discharge Chute Width:15.74"
Max Daylight: 23.62"
Max Mold Weight Moviing Platen:661 lbs
Min Mold Ht: 7.87"
Clamp Stroke: 15.72"
Ejector Stroke: 3.94"
Voltage: 460
Dimensions: 51.9"W x 80.2"H x 138.35"L
Weight: 6,706 lbs

Equipped With:

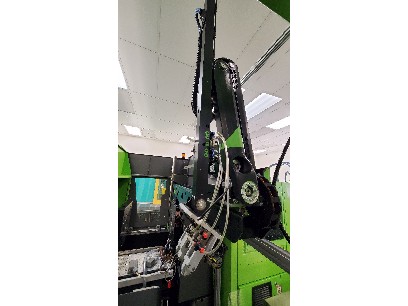

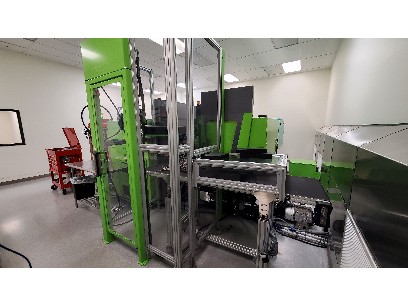

Engel e-pic robot with conveyor and enclosure
Complete conversion kit: 22 mm thermoplstic screw & barrel (in crate/never used)

CC300 Control Package including

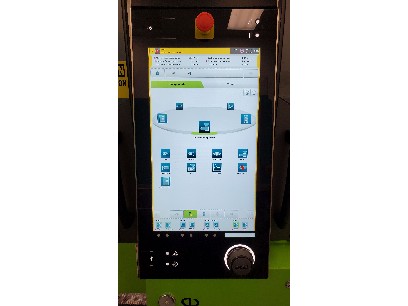

- 15" TFT-color Touch Screen
- Ethernet network interface
- Freely programmable cycle sequence supported
by graphical symbols
- Screen pages configurable
- e-help
- Notepad
- Alarm Messaging via Email
- weekly timer
- Micrograph
- Microplast
- PD-log
Screen text
1. language for screen text english: EN
2. language for screen text spanish: ES

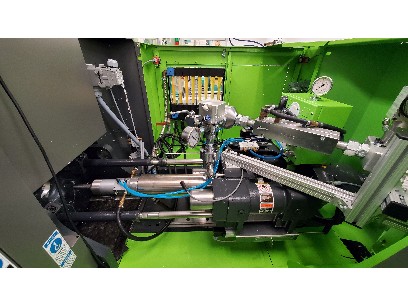

LSR-package consisting of:
- Bi-metallic (M3), water cooled barrel, L/D=16
- Nitrided (S1) screw including spring loaded check disk
- Ecodrive
- 8 zones of heat for the mold
- Swiveling inj unit
- Acoustic alarm with light
- Ecograph
- Key card access
- PD Graphic II
- Program "virt mold"
- Minicam
- Air blow
- Water manifold
- Water cooled pneumatic shut-off nozzle
- LSR Filter Pack
- Program Flushing
- Injection pressure limited

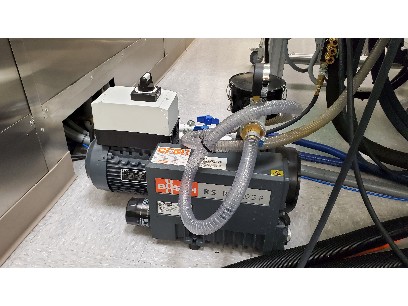

- Integrated vacuum pump
- Robot Interface
- Interface for program demolding
- Check valve for ejector
- Ejector Back Confirmation
- Core Pull
- Water manifold
- Service receptacle
- Interface for freely programmable dry contacts
