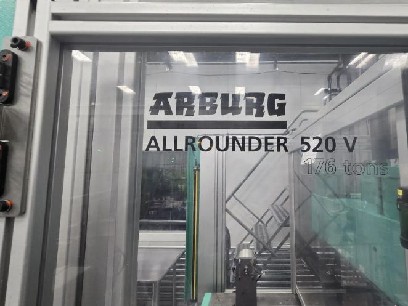

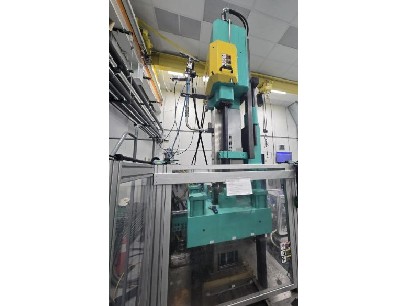

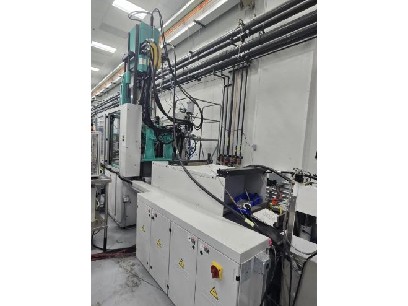

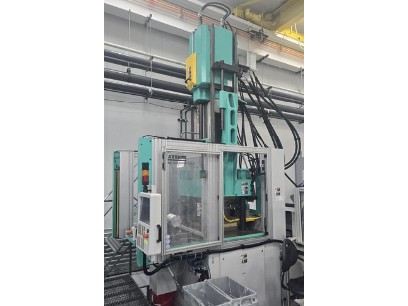

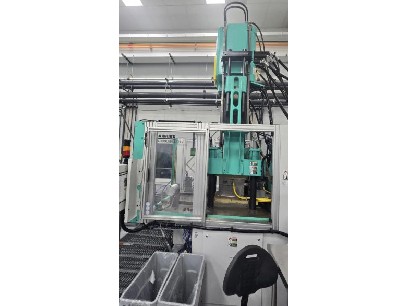

2014 Arburg Vertical Single Station LSR 176 Ton 10.3 Oz with Selogica Control - 520V-1600-800
Arburg 520V-1600-800
Age: 2014
Stock Number: 4203

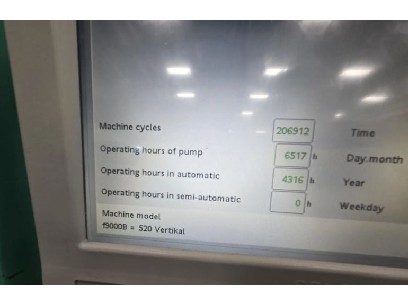

Only 4.200 Hours
Click to view larger photo
Request a quote on stock# 4203
| Specification | Description |
|---|
| Clamp Force: | 176 US Tons |
| Shot Size: | 10.3 Oz/45 mm |
| Platen Size: | 30.7" x 30.7"" |
| Tie Bar Spacing: | 20.47" x 20.47" |
| Min Mold Ht: | 15.75" |
| Max Weight Movable Mold Half: | 882 lbs |
| Clamp daylight Max: | 27.56" |
| Ejector Stroke: | 6.89" |
| Motor size | 40 HP |
| Voltage: | 460 |
| Dimensions L x W x H: | 147.05" x 52.76" x 163.39" Con |
| Weight: | 14,771 lbs |
Equipped With:
Selogica Direct Control
Vertical Clamp/Vertical Injection
Stage 2 Servo Regulator
Printer Interface
(2) Air Blows
Core Pull
Pneumatic Safety Gate
8 Programmable I/O's
6 Heating Zones for Mold
1 Freely Programmable Page
Interface for LSR Pumping Unit
